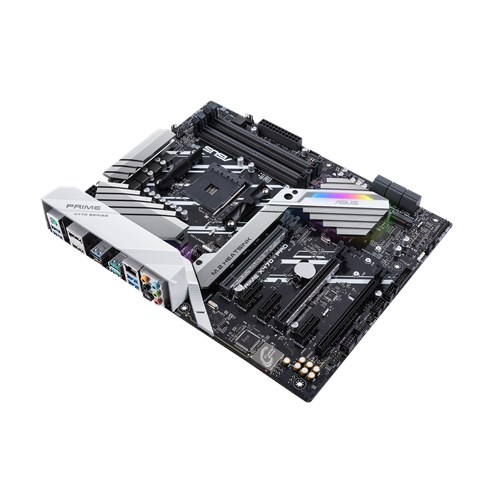

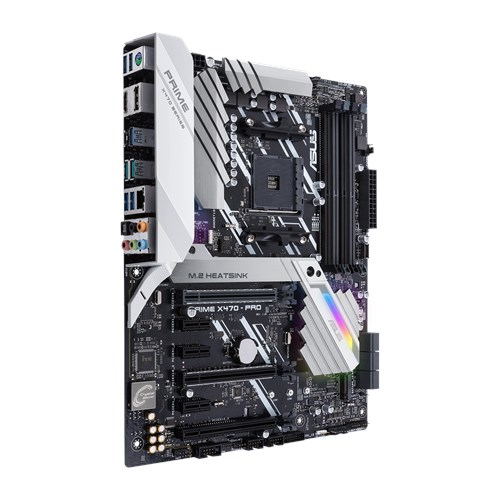

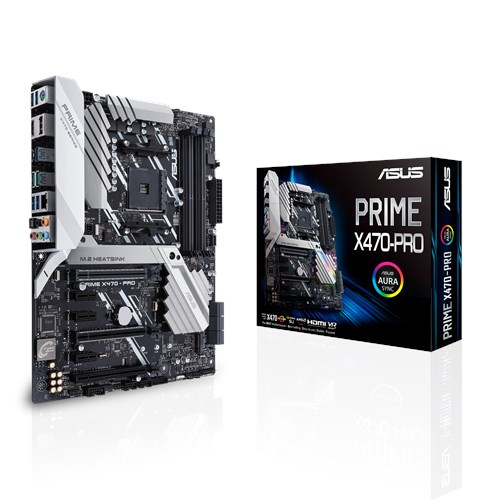

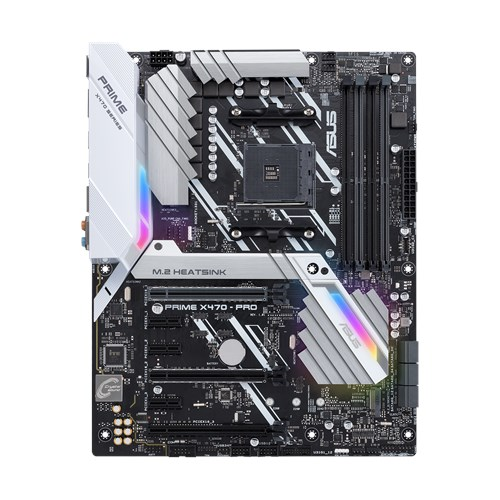

ASUS PRIME X470-PRO
Socket : AM4
Graphics : Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU; Multi-VGA output support : HDMI/DisplayPort ports; - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz; - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz; Maximum shared memory of 2048 MB (for iGPU exclusively)
CPU's supported : AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores;
Chipset : AMD X470
Expansion Slots : AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors; 2 x PCIe 3.0 x16 (x16 or dual x8); AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0 x16 (x8 mode); AMD X470 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1
Storage : AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode); AMD X470 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*3; 6 x SATA 3Gb/s port(s); Support Raid 0, 1, 10
Memory type : AMD Ryzen™ 2nd Generation Processors; 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *; AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors; 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory; AMD 7th Generation A-Series/Athlon X4 Processors; 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory; Dual Channel Memory Architecture; ECC Memory (ECC model) support varies by CPU.
I/O : 1 x PS/2 keyboard/mouse combo port(s); 1 x DisplayPort; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.1 Gen 2 (teal blue)Type-A,; 1 x USB 3.1 Gen 1 USB Type-CTM,; 5 x USB 3.1 Gen 1; 1 x Optical S/PDIF out; 5 x Audio jack(s)
Connectors : 2 x Aura RGB Strip Headers; 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode); 6 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (1 x 4 -pin); 1 x CPU OPT Fan connector(s) (1 x 4 -pin); 3 x Chassis Fan connector(s) (2 x 4 -pin); 1 x AIO_PUMP connector (1 x 4 -pin); 1 x W_PUMP+ connector (1 x 4 -pin); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt); 1 x Clear CMOS jumper(s); 1 x 14-1 pin TPM connector; 1 x COM port header; 1 x T_Sensor Connector; 1 x USB 3.1 Gen 2 front panel connector
Audio : Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Front panel audio connector (AAFP); Audio Feature : - Optical S/PDIF out port(s) at back panel; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; - EMI protection cover to prevent electrical noise to affect the amplifier quality
LAN : Intel® I211-AT
BIOS : 256 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect)memory information
Form Factor : ATX Form Factor; 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
OS : Windows® 10 64-bit
Warranty : 36 Months
Graphics : Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU; Multi-VGA output support : HDMI/DisplayPort ports; - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz; - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz; Maximum shared memory of 2048 MB (for iGPU exclusively)
CPU's supported : AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores;
Chipset : AMD X470
Expansion Slots : AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors; 2 x PCIe 3.0 x16 (x16 or dual x8); AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0 x16 (x8 mode); AMD X470 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1
Storage : AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode); AMD X470 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*3; 6 x SATA 3Gb/s port(s); Support Raid 0, 1, 10
Memory type : AMD Ryzen™ 2nd Generation Processors; 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *; AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors; 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory; AMD 7th Generation A-Series/Athlon X4 Processors; 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory; Dual Channel Memory Architecture; ECC Memory (ECC model) support varies by CPU.
I/O : 1 x PS/2 keyboard/mouse combo port(s); 1 x DisplayPort; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.1 Gen 2 (teal blue)Type-A,; 1 x USB 3.1 Gen 1 USB Type-CTM,; 5 x USB 3.1 Gen 1; 1 x Optical S/PDIF out; 5 x Audio jack(s)
Connectors : 2 x Aura RGB Strip Headers; 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode); 6 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (1 x 4 -pin); 1 x CPU OPT Fan connector(s) (1 x 4 -pin); 3 x Chassis Fan connector(s) (2 x 4 -pin); 1 x AIO_PUMP connector (1 x 4 -pin); 1 x W_PUMP+ connector (1 x 4 -pin); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt); 1 x Clear CMOS jumper(s); 1 x 14-1 pin TPM connector; 1 x COM port header; 1 x T_Sensor Connector; 1 x USB 3.1 Gen 2 front panel connector
Audio : Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Front panel audio connector (AAFP); Audio Feature : - Optical S/PDIF out port(s) at back panel; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; - EMI protection cover to prevent electrical noise to affect the amplifier quality
LAN : Intel® I211-AT
BIOS : 256 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect)memory information
Form Factor : ATX Form Factor; 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
OS : Windows® 10 64-bit
Warranty : 36 Months
