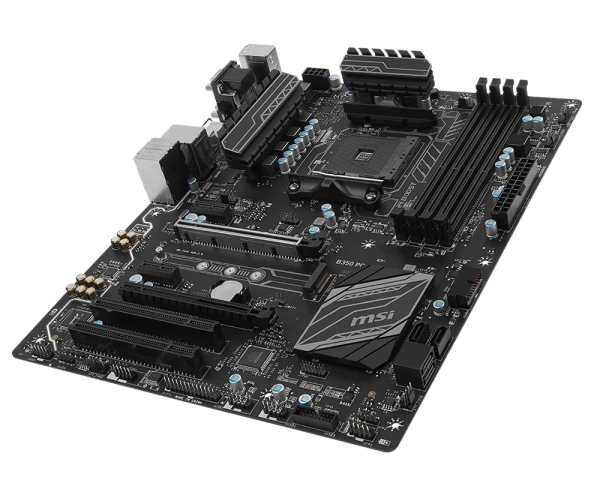

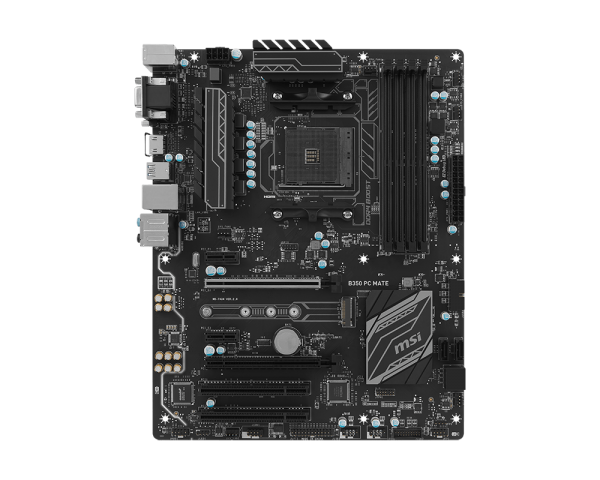

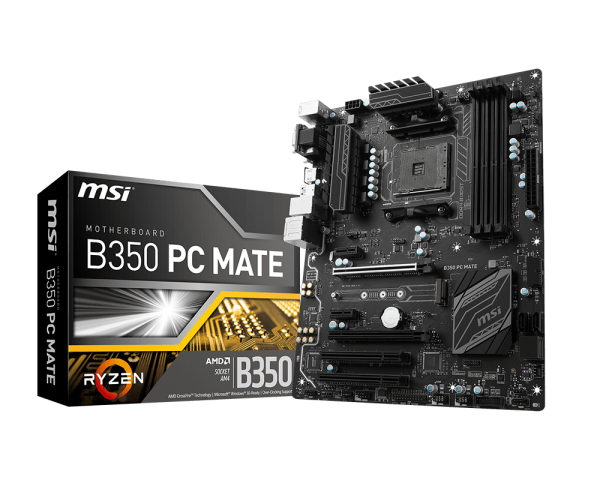

MSI B350 PC MATE
Socket : AM4
Graphics : • 1 x VGA port, supports a maximum resolution of 2048x1280@60HZ (RB)*; • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*; • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz*; * Only support when using a 7th Gen A-series/ Athlon™ processor.; * Maximum shared memory of 2048 MB.
CPU's supported : • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4; * This function will be supported depend on the CPU.
Chipset : AMD® B350 Chipset
Expansion Slots : • 1 x PCIe 3.0 x16 slot (PCI_E2): - Supports x 16 speed with RYZEN Series Processors; - Supports x 8 speed with 7th Gen A-series/ Athlon™ processors; • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*; • 2 x PCIe 2.0 x1 slots; • 2 x PCI slots; * PCI_E4 slot will support PCIe 2.0 x2 only, when installing device in any PCIe x1 slot.
Storage : • AMD® B350 Chipset; • 4 x SATA 6Gb/s ports*: - Support RAID 0, RAID 1 and RAID 10; • 1 x M.2 port (Key M): - Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s; - Supports 2242/ 2260 /2280/ 22110 storage devices.
Memory type : • 4 x DDR4 memory slots, support up to 64GB: - Support DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz*; • Dual channel memory architecture; * 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz.; Please refer www.msi.com for more information on compatible memory.

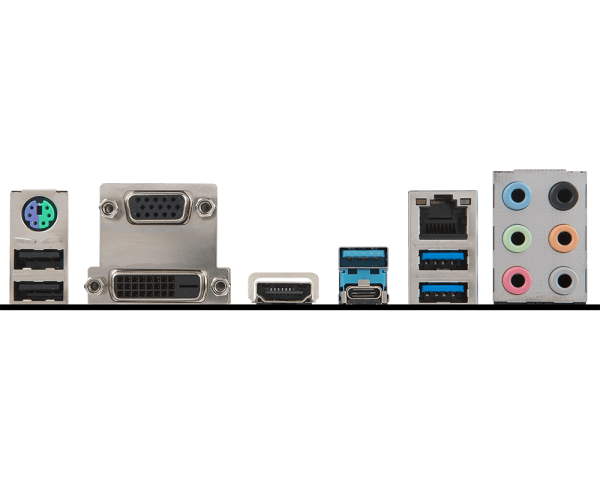

I/O : - 1 x PS/2 keyboard/ mouse combo port; - 2 x USB 2.0 Type-A ports; - 1 x VGA port - 1 x DVI-D port; - 1 x HDMI™ port; - 3 x USB 3.1 Gen1 Type-A ports; - 1 x USB 3.1 Gen1 Type-C port; - 1 x LAN (RJ45) port; - 6 x OFC audio jacks.
Connectors : - 1 x 24-pin ATX main power connector; - 1 x 8-pin ATX 12V power connector; - 4 x SATA 6Gb/s connectors; - 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); - 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports); - 1 x 4-pin CPU fan connector; - 1 x 4-pin water-pump-fan connector; - 4 x 4-pin system fan connectors; - 1 x 4-pin RGB LED strip connector; - 1 x Serial port connector; - 1 x Parallel port connector; - 1 x TPM module connector; - 1 x Front panel audio connector; - 2 x System panel connectors; - 1 x Chassis Intrusion connector; - 1 x Clear CMOS jumper.
Audio : • Realtek® ALC892 Codec: - 7.1-Channel High Definition Audio
LAN : 1 x Realtek® 8111H Gigabit LAN controller
BIOS : Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
Form Factor : 30.4 cm x 24.3 cm; • ATX Form Factor
OS : Ready for Windows 10
Other : 9 mounting holes
Warranty : 36 Months
Graphics : • 1 x VGA port, supports a maximum resolution of 2048x1280@60HZ (RB)*; • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*; • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz*; * Only support when using a 7th Gen A-series/ Athlon™ processor.; * Maximum shared memory of 2048 MB.
CPU's supported : • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4; * This function will be supported depend on the CPU.
Chipset : AMD® B350 Chipset
Expansion Slots : • 1 x PCIe 3.0 x16 slot (PCI_E2): - Supports x 16 speed with RYZEN Series Processors; - Supports x 8 speed with 7th Gen A-series/ Athlon™ processors; • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*; • 2 x PCIe 2.0 x1 slots; • 2 x PCI slots; * PCI_E4 slot will support PCIe 2.0 x2 only, when installing device in any PCIe x1 slot.
Storage : • AMD® B350 Chipset; • 4 x SATA 6Gb/s ports*: - Support RAID 0, RAID 1 and RAID 10; • 1 x M.2 port (Key M): - Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s; - Supports 2242/ 2260 /2280/ 22110 storage devices.
Memory type : • 4 x DDR4 memory slots, support up to 64GB: - Support DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz*; • Dual channel memory architecture; * 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz.; Please refer www.msi.com for more information on compatible memory.
I/O : - 1 x PS/2 keyboard/ mouse combo port; - 2 x USB 2.0 Type-A ports; - 1 x VGA port - 1 x DVI-D port; - 1 x HDMI™ port; - 3 x USB 3.1 Gen1 Type-A ports; - 1 x USB 3.1 Gen1 Type-C port; - 1 x LAN (RJ45) port; - 6 x OFC audio jacks.
Connectors : - 1 x 24-pin ATX main power connector; - 1 x 8-pin ATX 12V power connector; - 4 x SATA 6Gb/s connectors; - 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); - 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports); - 1 x 4-pin CPU fan connector; - 1 x 4-pin water-pump-fan connector; - 4 x 4-pin system fan connectors; - 1 x 4-pin RGB LED strip connector; - 1 x Serial port connector; - 1 x Parallel port connector; - 1 x TPM module connector; - 1 x Front panel audio connector; - 2 x System panel connectors; - 1 x Chassis Intrusion connector; - 1 x Clear CMOS jumper.
Audio : • Realtek® ALC892 Codec: - 7.1-Channel High Definition Audio
LAN : 1 x Realtek® 8111H Gigabit LAN controller
BIOS : Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
Form Factor : 30.4 cm x 24.3 cm; • ATX Form Factor
OS : Ready for Windows 10
Other : 9 mounting holes
Warranty : 36 Months
